HYDRAULIC

Rivet tools designed for efficient installation of blind rivets and lockbolt fasteners

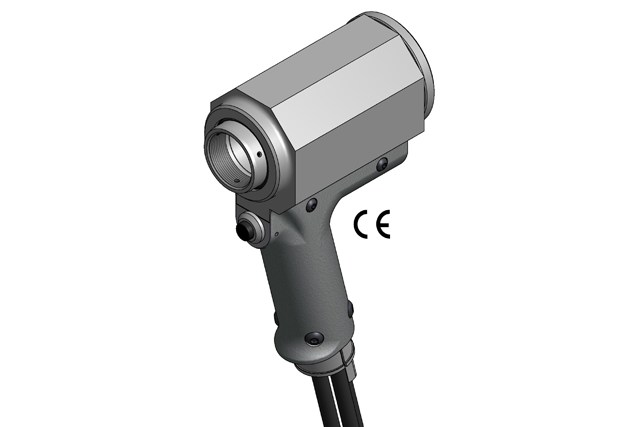

GB20SF Hydraulic Rivet Tool
New!

GB20SF

20,650
2.00"
11
Rated Pull Load
Stroke
lbs.

The GB20SF is a hydraulic installation tools designed specifically for the efficient installation of 1/2”, 5/8”, 12mm, 14mm & 16mm diameter BobTail® fasteners. It weighs approximately 11 lbs. (4.99 kg). and can be operated in any position. It has a 2.00” (5.08cm) rivet stroke and a maximum rated pull load of 20,650 lbs. (92kN) @ 7,000 psi. (483 bar) and a maxi-mum rated return load of 9,500 lbs. (42 kN) @ 5000 psi. (345 bar).

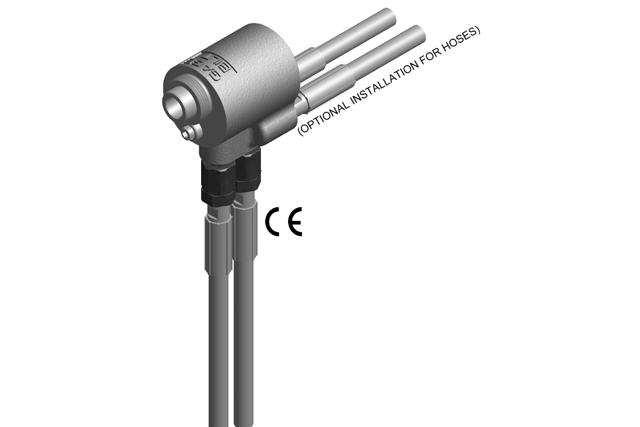

GB206-500 Hydraulic Rivet Tool

GB206-500

5,825
.500"
3
Rated Pull Load
Stroke
lbs.

The GB206-500 and GB206-500A are hydraulic installation tools designed specifically for the efficient installation of blind, lockbolt and Magna-Grip® fasteners thru 3/16" diameter. They weigh just over 3 lbs. (1.36kg) and can be operated in any position. They have a .500” (12.7mm) fastener setting stroke and a rated pull load of 5,825 lbs. (25.9 kN).

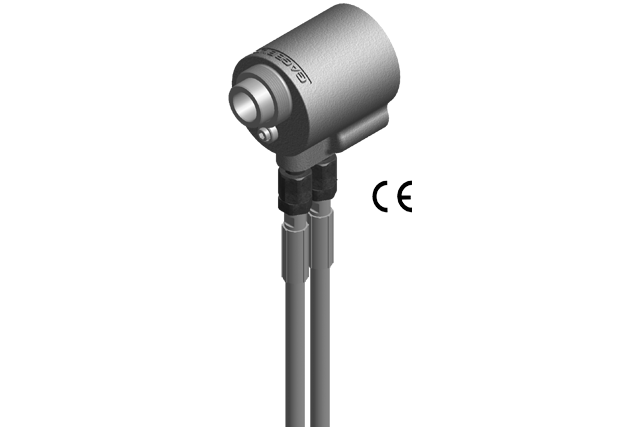

GB208-625 Hydraulic Rivet Tool
New!

GB208-625

10,000
.625"
4
Rated Pull Load
Stroke
lbs.

The GB208-625 and GB208-625A are hydraulic installation tools designed specifically for the efficient installation of blind rivets, lock-bolt fasteners thru 3/8" diameter, and installation of interference for Hi-Lite® pins. They provide a high power to weight ratio enabling one hand installation at production speed. They weigh just under 4 lbs. (1.81 kg) and can be operated in any position. They have a .625 (15.9 mm) fastener setting stroke and a rated pull load of 10,000 lbs. (44.5 kN).

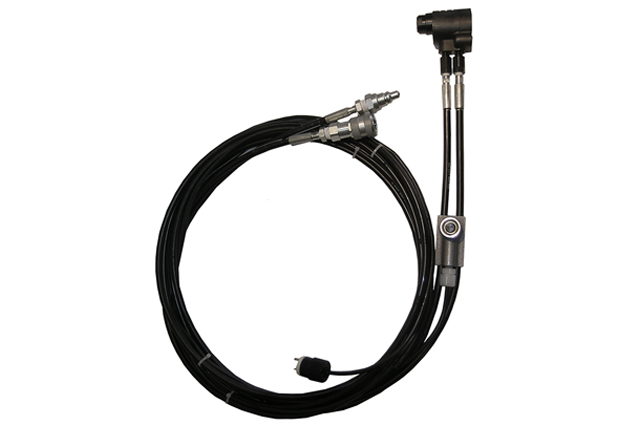

GB500 Hydraulic Rivet Tool

GB500

10,000
.750"
3
Rated Pull Load
Stroke
lbs.

The GB500 series and the GB500A series are hydraulic installation tools designed specifically for the efficient installation of a wide variety of lockbolt & blind bolt fasteners. These tools are unique in that they have a built in nose assembly which helps in limited clearance areas. These tools can be operated in any position with one hand. They have a .750 (19.05mm) setting stroke and rated pull load of 10,000 lbs. (44.48 kN).

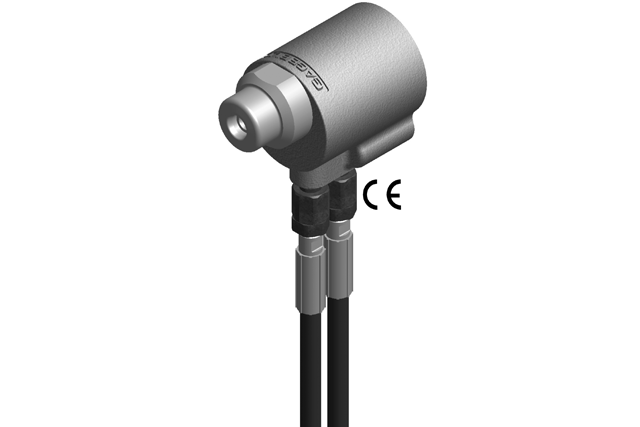

GB510BOM Hydraulic Rivet Tool
New!

GB510BOM

7,800
.750"
4
Rated Pull Load
Stroke
lbs.

The GB510BOM and the GB510ABOM are hydraulic installation tools designed specifically for the efficient installation of 5/16” (7.94 mm) BOM® fasteners. They weigh just over 4 lbs. (1.81 kg) and can be operated in any position. They have a .750” (19.1 mm) fastener setting stroke and a rated pull load of 7,800 lbs. (34.7 kN).

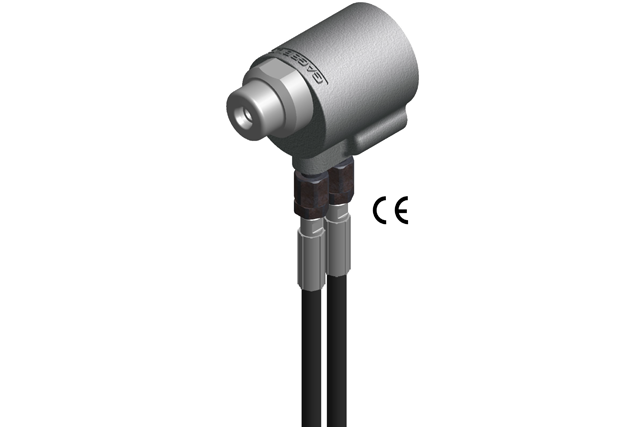

GB512BOM Hydraulic Rivet Tool
New!

GB512BOM

10,000
.750"
4
Rated Pull Load
Stroke
lbs.

The GB512BOM and GB512ABOM are hydraulic installation tools designed specifically for the efficient installation of 3/8” BOM® fasteners. These tools are unique in that they have a built in nose assembly which helps in limited clearance areas. These tools can be operated in any position. They have a .750 (19.1mm) setting stroke and rated pull load of 10,000 lbs. (44.5 kN)./p>

GB510NAS Hydraulic Rivet Tool
New!

GB510NAS

7,800
.750"
4
Rated Pull Load
Stroke
lbs.

The GB510NAS and the GB510ANAS are hydraulic installation tools designed specifically for the efficient installation of 5/16” (7.94 mm) NAS Shear, NAS Tension Pull Type lockbolts, C6L® & GP® fasteners. They weigh just over 4 lbs. (1.81 kg) and can be operated in any position. They have a .750” (19.1 mm) fastener setting stroke and a rated pull load of 7,800 lbs. (34.7 kN).

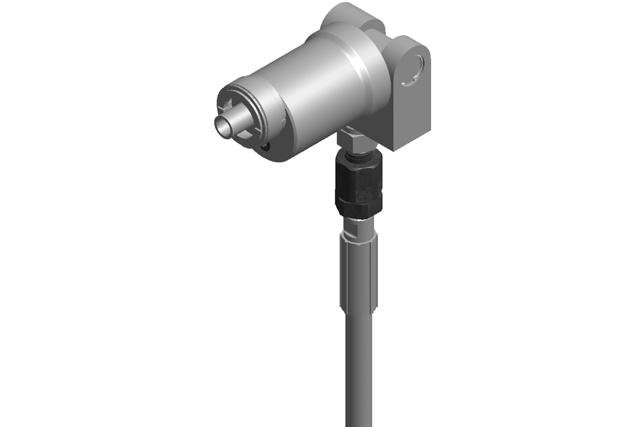

GB568 Hydraulic Rivet Tool
New!

GB568

5,940
.300"
2.5
Rated Pull Load
Stroke
lbs.

The GB568 and the GB568A are hydraulic installation tools designed specifically for the efficient installation of HUCKRIMP® (krimpnuts) with a crimping action that deforms the nut to provide accurate installation loads. They weigh just over 2.5 lbs. (1.13kg) and can be operated in any position. They have up to a .300” (7.6 mm) fastener setting stroke and a rated pull load of 5,940 lbs. (26.4 kN).

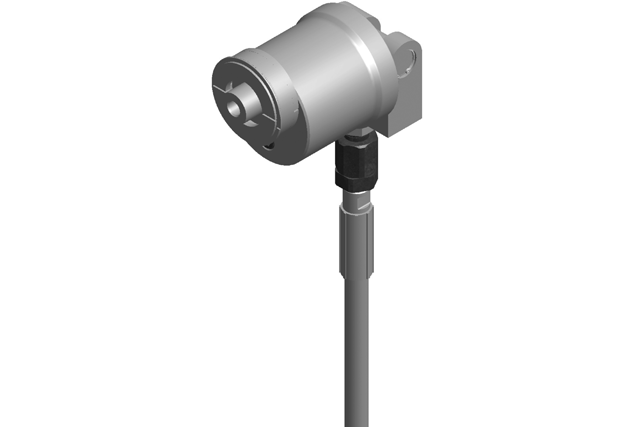

GB206 Hydraulic Rivet Tool
New!

GB574

12,428
.300"
3
Rated Pull Load
Stroke
lbs.

The GB574 and the GB574(A) are hydraulic installation tools designed specifically for the efficient installation of HUCKRIMP® (krimpnuts) with a crimping action that deforms the nut to provide accurate installation loads. They weigh just over 3 lbs. (1.36kg) and can be operated in any position. They have up to a .300” (7.6 mm) fastener setting stroke and a rated pull load of 12,428 lbs. (55.3 kN).

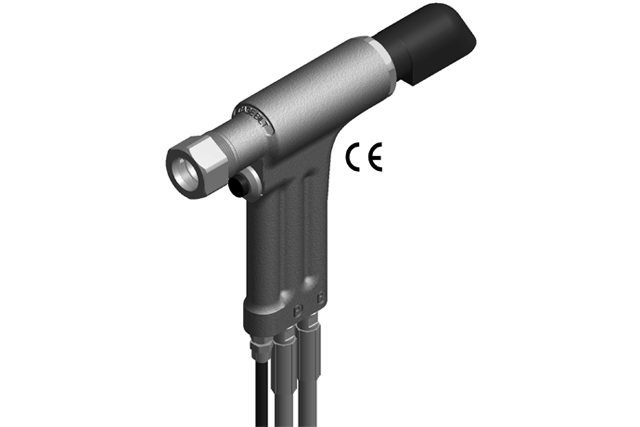

GB2480 Hydraulic Rivet Tool

GB2480

5,600
.875"
3.5
Rated Pull Load
Stroke
lbs.

The GB2480 & GB2480(A) are a hydraulic installation tool designed specifically for the efficient installation of blind fasteners, lockbolts and Multi-Grip fasteners thru 1/4" diameter. It weighs just over 3 lbs. (1.59 kg) and can be operated in any position. It has an .875” (22.2 mm) rivet setting stroke and rated pull load of 5,600 lbs. (24.91 kN). The GB2480 (electric actuated) installation tool operates on hydraulic pressure developed by the GB940 Powerunit set at 8,400 psi (579.1 bar) max PULL pressure and 3,200 psi (220.6 bar) max RETURN pressure. The tool comes equipped with 12 ft. (3.65 m) hydraulic hoses and couplings, electric switch and cord.

GB2581 Hydraulic Rivet Tool

GB2581

10,700
1.000"
6.6
Rated Pull Load
Stroke
lbs.

The GB2581 & GB2581A is a hydraulic installation tool designed specifically for the efficient installation of a wide range of blind, lockbolt and Magna-Grip® fasteners thru 3/8" diameter. It weighs 6.6 lbs. (2.99 kg) and can be operated in any position with one hand. It has a 1.000" (25.4 mm) rivet setting stroke and a rated pull load of 10,700 lbs. (47.59 kN) @ 7,400 psi. (510.2 bar). The GB2581 installation tool operates on hydraulic pressure developed by the GB940 power unit set at 7,400 psi. (510.2 bar) maximum PULL pressure and 3,200 psi (220.6 bar) maximum RETURN pressure. The tool comes equipped with 12 ft. hoses and electric cord kit complete with quick disconnects.

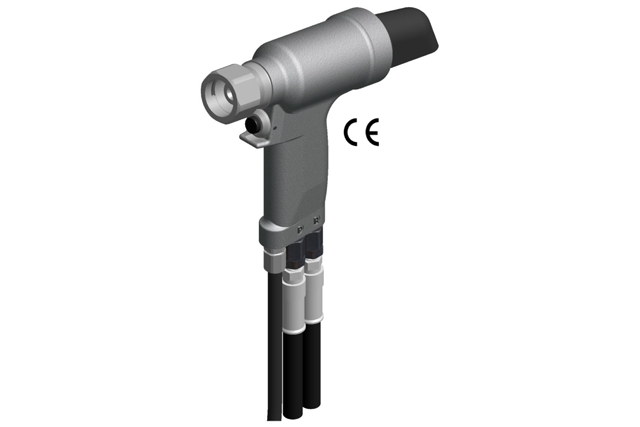

GB2581WS Hydraulic Rivet Tool

GB2581WS

10,700
1.000"
6
Rated Pull Load
Stroke
lbs.

The GB2581WS & GB2581AWS are hydraulic installation tools designed specifically for the efficient installation of blind, lockbolt and Magna-Grip® fasteners thru 3/8" diameter. It weighs 6.6 lbs. (2.99 kg) and can be operated in any position. It has a 1.000" (25.4 mm) fastener setting stroke and a rated pull load of 10,700 lbs. (47.59 kN) @ 7,400 psi. (510.2 bar).

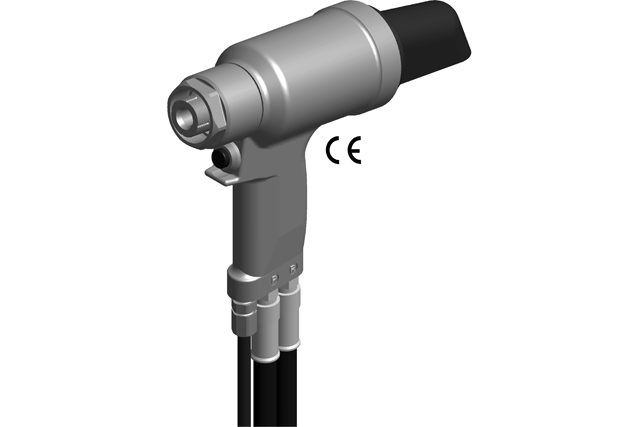

GB2600 Hydraulic Rivet Tool

GB2600

13,840
1.25"
7.3
Rated Pull Load
Stroke
lbs.

The GB2600 and the GB2600A are hydraulic installation tools designed specifically for the efficient installation of blind fasteners and up to 3/8” (9.5 mm) pintail-style lockbolts. It weighs 7.3 lbs. (3.3 kg) and can be operated in any position. It has a 1.25" (31.8 mm) fastener stroke and a rated pull load of 13,840 lbs. (61.6 kN) @ 5,700 psi. (393 bar). The GB2600 electrically actuated installation tool operates on hydraulic pressure developed by the GB940 Power Unit set at 7,400 psi (510 bar) maximum PULL pressure and 3,200 psi. (220 bar) maximum RETURN pressure. The tool comes equipped with 2 feet (.61 m) of hydraulic hoses and couplings, electric switch and cord.

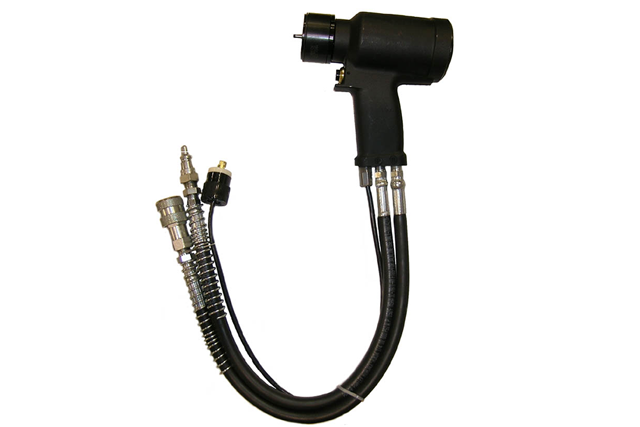

GB2620 Hydraulic Rivet Tool

GB2620

17,745
1.437"
9.9
Rated Pull Load
Stroke
lbs.

The GB2620 and the GB2620A are hydraulic installation tools designed specifically for the efficient installation of 1/2” diameter lockbolts. It weighs just over 9 lbs. 14 oz. (4.5 kg). and can be operated in any position. It has a 1.437” (36.5mm) rivet stroke and a rated pull load of 17,745 lbs. (78.9kN) @ 6,500 psi. (448.2 bar). The GB2620 (Electric actuated) installation tool operates on hydraulic pressure developed by the GB940 Powerunit set at 7,400 psi (510.2 bar) maximum PULL pressure and 3,200 psi. (220.6 bar) maximum RETURN pressure. The tool comes equipped with 2 feet (.61 m) of hydraulic hoses and couplings, electric switch and cord.

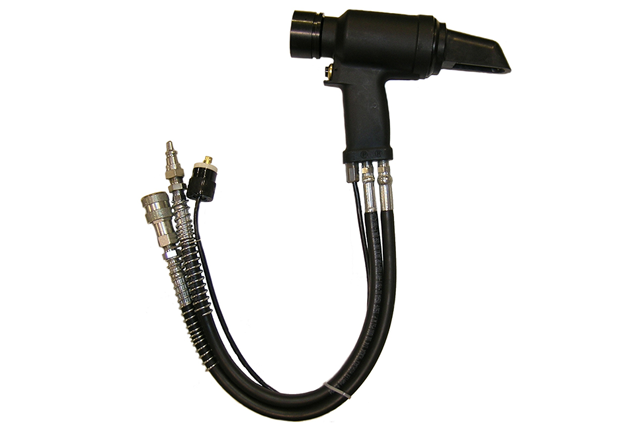

GB2620PT Hydraulic Rivet Tool

GB2620PT

17,745
1.437"
9.9
Rated Pull Load
Stroke
lbs.

The GB2620PT / GB2620PTA is a hydraulic installation tool designed specifically for the efficient installation of 1/2” diameter lockbolts only. It weighs 9 lbs. 14 oz. (4.5 kg). It has a 1.437" (36.5mm) fastener setting stroke and a rated pull load of 17,745 lbs. (78.9kN) @ 6,500 psi. (448.2 bar). The GB2620PT (Electric actuated) installation tool operates on hydraulic pressure developed by the GB940 powerunit set at 7,400 psi. (510.2 bar) maximum PULL pressure and 3,200 psi. (220.6 bar) maximum RETURN pressure, enabling the tool to pull all the fasteners listed on the selection chart without adjusting pressures.

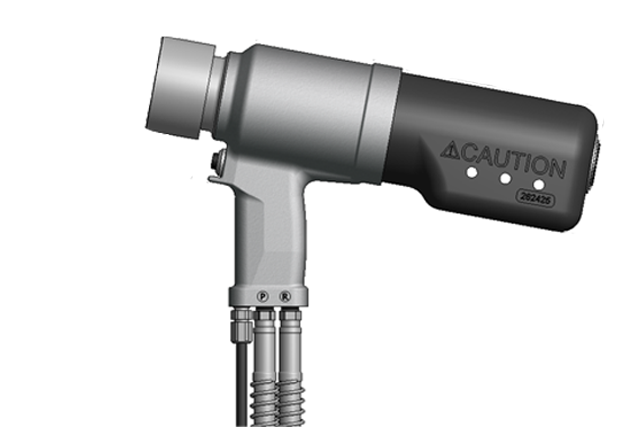

GB2624PTD Hydraulic Rivet Tool
New!

GB2624PTD

30,356
1.687"
15
Rated Pull Load
Stroke
lbs.

The GB2624PTD is a hydraulic installation tools designed specifically for the efficient installation of 1/2” BOM® fasteners. It weighs approximately 15 lbs. (6.80 kg). and can be operated in any position. It has a 1.687” (4.28cm) rivet stroke and a maximum rated pull load of 30,356 lbs. (135.03kN) @ 6,500 psi. (448 bar). The GB2624PTD (Electric actuated) installation tool operates on hydraulic pressure developed by the GB940 Powerunit with a maximum pull pressure set at 7,400 psi. (510 bar) and a maximum return pressure set at 3,200 psi. (221 bar).

GB2628 Hydraulic Rivet Tool
THE BIG GUN!

GB2628

45,769
1.812"
20.8
Rated Pull Load
Stroke
lbs.

The GB2628 and the GB2628A are hydraulic installation tools designed specifically for the efficient installation of 1/2”, 5/8” & 3/4” diameter lockbolts. It weighs just over 20.8 lbs. (9.43 kg). and can be operated in any position. It has a 1.812” (46mm) fastener stroke and a rated pull load of 45,769 lbs. (203.58kN) @ 7,400 psi. (510.2 bar). The GB2628 installation tool operates on hydraulic pressure developed by the GB940 Powerunit set at 7,400 psi (510.2 bar) maximum PULL pressure and 3,200 psi. (220.6 bar) maximum RETURN pressure. The tool comes equipped with 2 feet (.61 m) of hydraulic hoses and couplings, electric switch and cord.

GB2630 Hydraulic Rivet Tool
THE BIG GUN!

GB2630

55,940
1.906"
22.4
Rated Pull Load
Stroke
lbs.

The GB2630 and the GB2630A are hydraulic installation tools designed specifically for the efficient installation of 7/8” diameter lockbolts. It weighs just over 22.4 lbs. (10.2 kg). and can be operated in any position with one hand. It has a 1.906” (48.4mm) rivet stroke and a rated pull load of 55,940 lbs. (248.8kN) @ 7,400 psi. (510.2 bar). The GB2630 installation tool operates on hydraulic pressure developed by the GB940 Powerunit set at 7,400 psi (510.2 bar) maximum PULL pressure and 3,200 psi. (220.6 bar) maximum RETURN pressure. The tool comes equipped with 2 feet of hydraulic hoses and couplings, electric switch and cord.

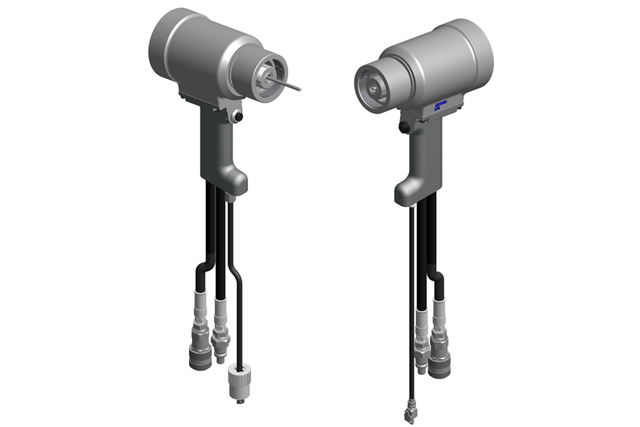

GB3585 Hydraulic Rivet Tool

GB3585

45,668
1.810"
19
Rated Pull Load
Stroke
lbs.

The GB3585 and the GB3585A are hydraulic installation tools designed specifically for the efficient installation of 1/2” - 3/4” diameter pintail and pintail-less style lockbolts. It weighs just over 19 lbs. (8.6 kg). and can be operated in any position. It has a 1.810” (46 mm) fastener stroke and a rated pull load of 45,668 lbs. (203 kN) @ 7,400 psi. (510 bar).

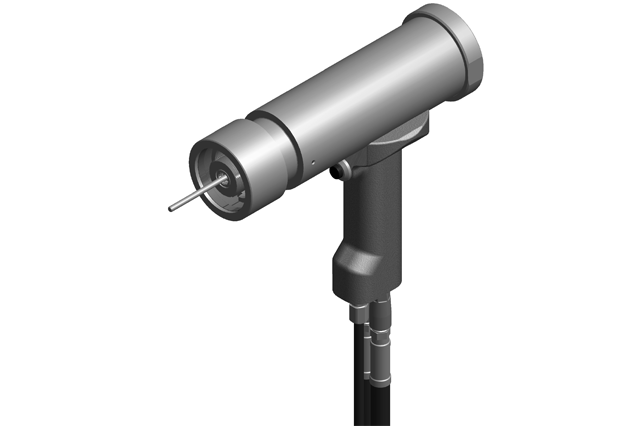

GB7624 Hydraulic Rivet Tool
THE BIG GUN!

GB7624

40,000
1.970"
15
Rated Pull Load
Stroke
lbs.

The GB7624 & GB7624A are hydraulic installation tools capable of installing 5/8" and 3/4" standard lockbolts. They weigh 15 lbs. (6.8 kg) and can be operated in any position with one hand. They have a 1.970" (50.0 mm) rivet setting stroke and a rated pull load of 40,000 lbs. (177.9 kN).
