BATTERY OPERATED RIVET TOOLS

Cordless, Portable & Lightweight Rivet Tools
GB101 Battery Operated Rivet Tool

GB101

INSTALLS: 3/32”-5/32” BLIND RIVETS
1,910
.787"
2.8
Rated Pull Load
Stroke
lbs.

The GB101 is a battery operated 12V installation tool designed specifically for the efficient installation of 3/32” (3.9 mm) thru 5/32” (4.0 mm) blind rivets. It weighs just 2.8 lbs. (1.3 kg) and can be operated in any position. It has a .788” (20 mm) fastener setting stroke and a rated pull load of 1,910 lbs. (6.80 kN).
- Charger charging time to - 22 / 30 minutes 90% / 100%

GB101A Battery Operated Rivet Tool
New!

GB101A


1,528.7
.788"
2.9
Rated Pull Load
Stroke
lbs.

The GB101A is a battery operated 12V installation tool designed specifically for the efficient installation of a variety of small diameter aerospace fasteners. It weighs just 2.9 lbs. (1.3 kg) and can be operated in any position. It has a .788” (20 mm) fastener setting stroke and a rated pull load of 1,528.7 lbs. (6.80 kN).

GB101S Battery Operated Rivet Tool

GB101S

INSTALLS: 3/32”-5/32” BLIND RIVETS WITH PROCESS MONITORING
1,910
.787"
2.8
Rated Pull Load
Stroke
lbs.

The GB101 is a battery operated 12V installation tool designed specifically for the efficient installation of 3/32” (3.9 mm) thru 5/32” (4.0 mm) blind rivets. It weighs just 2.9 lbs. (1.3 kg) and can be operated in any position. It has a .788” (20 mm) fastener setting stroke and a rated pull load of 1,528.7 lbs. (6.80 kN).
- Charger charging time to - 22 / 30 minutes 90% / 100%

GB106 Battery Operated Rivet Tool

GB106

INSTALLS ANY: 3/32”-3/16” STRUCTURAL AND NON-STRUCTURAL BLIND RIVETS
2,248
.827"
3.9
Rated Pull Load
Stroke
lbs.

The GB106 is a battery operated 16V installation tool designed specifically for the efficient installation of 3/32” (3.9 mm) thru 3/16” (4.8-5.0 mm) blind rivets. It weighs just 1.8 kg and can be operated in any position. It has a .827” (21 mm) fastener setting stroke and a rated pull load of 2,248 lbs. (10 kN).
- Charger charging time to - 22 / 30 minutes 90% / 100%

GB108 Battery Operated Rivet Tool

GB108

INSTALLS ANY: 3/32”-1/4”STRUCTURAL AND NON-STRUCTURAL BLIND RIVETS
4,496
1.181"
4.4
Rated Pull Load
Stroke
lbs.

The GB108 is a battery operated 20V cordless installation tool designed specifically for the efficient installation of blind rivets from 3/16” (4.8 mm) thru 1/4” (6.4 mm) diameter. It weighs just 4.4 lbs. (2.0 kg) and can be operated in any position. It has a 1.181” (30 mm) fastener setting stroke and a rated pull load of 4,496 lbs. (20 kN).
- Charger charging time to - 22 / 30 minutes 90% / 100%

GB108A Battery Operated Rivet Tool

GB108A

INSTALLS: 3/32”-1/4” BLIND RIVETS
4,496
1.181"
4.4
Rated Pull Load
Stroke
lbs.

The GB108A is a battery operated 20V installation tool designed specifically for the efficient installation of blind rivets from 3/16” (4.8 mm) thru 1/4” (6.4 mm) diameter. It weighs just over 4 lbs. (2.0 kg) and can be operated in any position. It has a 1.181” (30 mm) fastener setting stroke and a rated pull load of 4,496 lbs. (20 kN).
- Charger charging time to - 22 / 30 minutes 90% / 100%

GB110A Battery Operated Rivet Tool

GB110A

INSTALLS: 5/32”-1/4” LOCKBOLTS - MAGNA-GRIP®, C6L®, LGP® & NAS® - AND 1/4" BOM® (Repair Only)
5,395
1.181"
4.6
Rated Pull Load
Stroke
lbs.

The GB110A is a battery operated 20V installation tool designed specifically for the efficient installation of lockbolts for 5/32” (3.9 mm) thru 1/4” (6.4 mm) diameter, 3/32” (2.4 mm) thru 1/4” (6.4 mm) blind rivets and specific 5/16” (7.9 mm) blind rivets. It weighs just 4.6 lbs. (2.1 kg) and can be operated in any position. It has a 1.181” (30 mm) fastener setting stroke and a rated pull load of 5,395 lbs. (24 kN).
- Charger charging time to - 22 / 30 minutes 90% / 100%

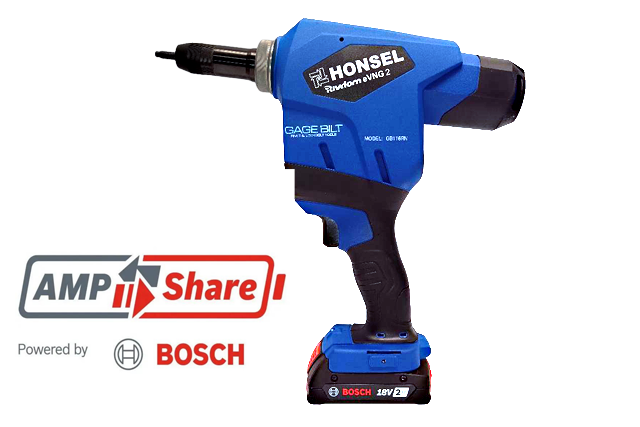

GB116RN Battery Operated Rivet Tool

GB116RN

INSTALLS: Rivet nuts M4-M10, M3/M12 Optional, Rivet studs M4-M8
Can be set to spin-spin or spin-pull.
5,620
.787"
5.3
Rated Pull Load
Stroke
lbs.

Weight (Incl. battery) - 5.3 lbs. (2.4 kg)
Total Stroke - .787” (20 mm)
Rated Pull Load - 5,620 lbs. (25 kN)
Charger charging time to - 22 / 30 minutes 90% / 100%

GB128 Battery Operated Rivet Tool

GB128

INSTALLS ANY: 1/4”- 5/16” SEAL PLUGS
5,395
1.181"
4.6
Rated Pull Load
Stroke
lbs.

The GB128 is a battery operated 20V cordless installation tool designed specifically for the efficient installation of seal plugs from 1/4” (6.4 mm) thru 5/16” (7.9 mm) diameter. It weighs just 4.6 lbs. (2.1 kg) and can be operated in any position. It has a 1.181” (30 mm) fastener setting stroke and a rated pull load of 5,395 lbs. (24 kN).
- Charger charging time to - 22 / 30 minutes 90% / 100%

BOM®, MAGNA-GRIP®, C6L®, LGP® & NAS® ARE REGISTERED TRADEMARKS OF ARCONIC INC.
