GB510BOM

Hydraulic Rivet Tool

GB510BOM Info:

DOWNLOADS

GB510BOM Manual

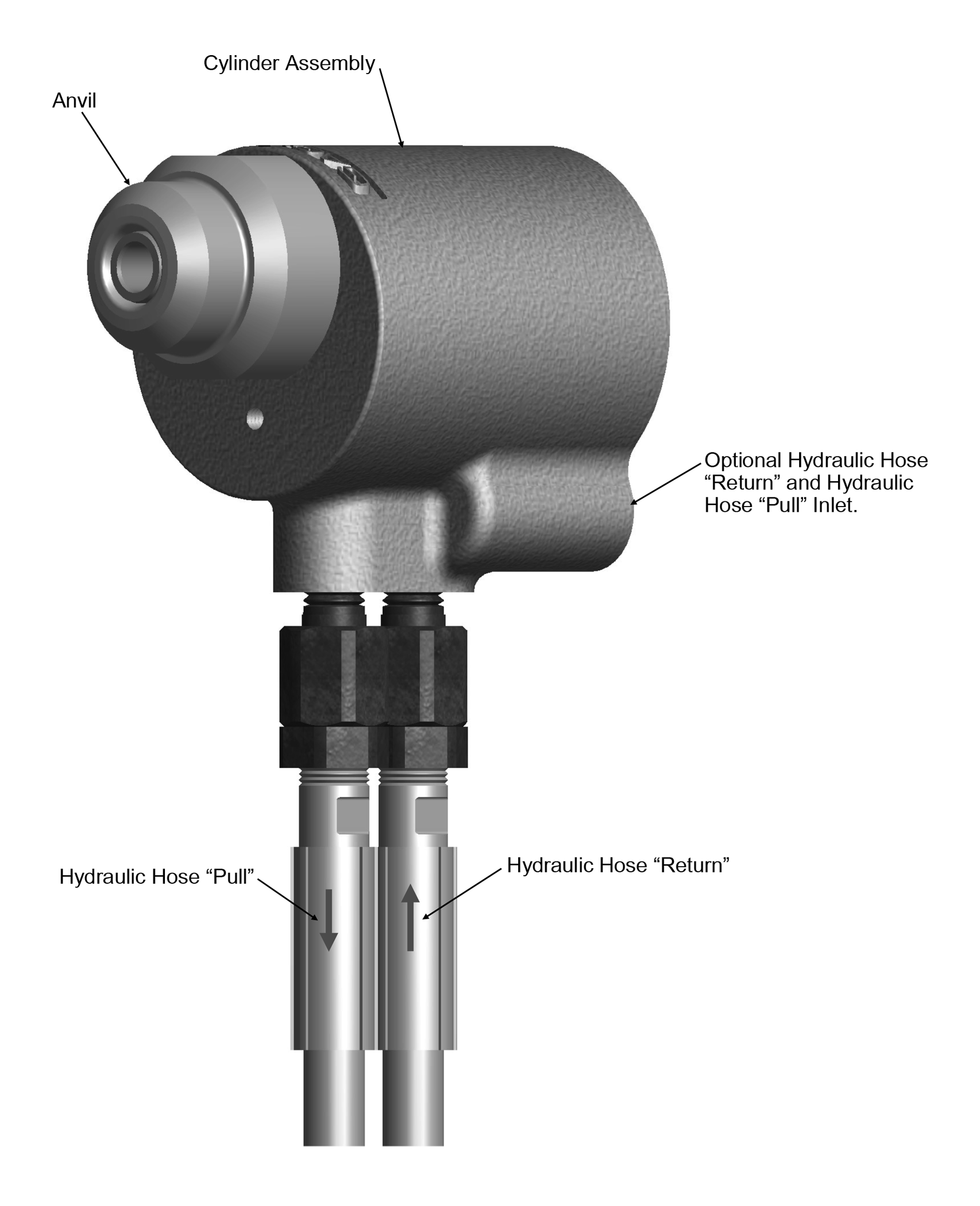

The GB510BOM and the GB510ABOM are hydraulic installation tools designed specifically for the efficient installation of 5/16” (7.94 mm) BOM® fasteners. They weigh just over 4 lbs. (1.81 kg) and can be operated in any position. They have a .750” (19.1 mm) fastener setting stroke and a rated pull load of 7,800 lbs. (34.7 kN).

The GB510BOM (electric actuated) installation tool operates on hydraulic pressure developed by the GB947 Powerunit set at 5,400 psi. (372.3 bar) - 5,600 psi. (386.1 bar) maximum PULL pressure and 2,200 (151.7 bar) - 2,400 psi (165.5 bar) maximum RETURN pressure. The tool comes equipped with 12’ (3.7 m) of hydraulic hoses with quick disconnects and a electric control cord assembly.

Weight	4 lbs. (1.81 kg)
Rated Pull Load	7,800 lbs. (34.7 kN)
Stroke	.750” (19.1 mm)
Warranty	1 year

Nose Assembly Selection Chart - GB510BOM

PLEASE CONTACT GAGE BILT FOR NOSE ASSEMBLY OPTIONS

CHERRYMAX®, CHERRYLOCK®, MAXIBOLT® and MBC® are registered trademarks of Cherry Aerospace Fasteners. HUCKMAX®, ASP® and UNIMATIC® are registered trademarks of HOWMET AEROSPACE. ALLMAX® is a registered trademark of Allfast Fastening Systems, Inc. UAB™ is a trademark of Arconic Inc.
(1) A-286 AND Ti ONLY
MOST TOOLS AVAILABLE WITH PISTOL GRIP (SH) AND IN-LINE SPLIT SYSTEMS (SR) AND/OR VACUUM COLLECTOR SYSTEMS.
*RECOMMENDED FOR HIGH PRODUCTION APPLICATIONS. GB940 (ELECTRIC) OR GB910 (AIR) POWERUNIT REQUIRED
Aerospace Blind Rivets for GB2480
CHERRYMAX® HUCKMAX® ALLMAX® NAS9301 12	1/8"-1/4"
UNIMATIC® BLIND RIVET NAS1919S & U NAS1921S & U	1/8"-1/4"
UNIMATIC BLIND BOLT MAXIBOLT® MS21140/1 S & U MS90353/4 S & U	5/32"-1/4"
"A" CODE CHERRYLOCK "A" NAS1398A NAS1399A	3/32"-1/4"
NUTPLATE	3/32"-1/8"
GROUND STUD BACS53B1EA1/2	-8 & -10
MBC® NAS1719-21	3/32"
ASP® 2 ASP ASP FF ASP F ASP LC	13/64"-21/64"
UAB™ EN6122 & UAB130 EU EN6127 & UAB6127 EU EN6128 & UAB100 EU EN6129 & UABP EU MAXIBOLT® PLUS	1/8"-1/4"

LGPL®, GPL®, MLGPL®, and MGPL® are registered trademarks of HOWMET AEROSPACE.
MOST TOOLS AVAILABLE WITH PISTOL GRIP (SH) AND IN-LINE SPLIT SYSTEMS (SR) AND/OR VACUUM COLLECTOR SYSTEMS.
A dash (-) indicates the tool will install that fastener but it is not the most cost effective solution.
*RECOMMENDED FOR HIGH PRODUCTION APPLICATIONS. GB940 (ELECTRIC) OR GB910 (AIR) POWERUNIT REQUIRED
**GB204 AND GB205 HYDRAULIC INSTALLATION TOOLS ARE RECOMMENDED FOR OFFSET AND CLOSED ACCESS APPLICATIONS
Aerospace Lockbolts for *GB2480
LGPL® Lightweight Groove Proportioned Lockbolt	1/8"-1/4"
GPL® Groove Proportioned Lockbolt	1/8"-1/4"
MLGPL® Metric Lightweight Groove Proportioned Lockbolt	-
MGPL® Metric Groove Proportioned Lockbolt	4mm-6mm
NAS TENSION	1/8"-1/4"
NAS SHEAR	1/8"-1/4"

POP® is a registered trademark of Emhart Teknologies. Monobolt® and Klamp-Tite® are registered trademarks of Avdel UK Limited. Bulb-tite® is a registered trademark of GESIPA Fasteners USA, Inc. Floor-Tight® and Magna-Lok® are registered trademarks of HOWMET AEROSPACE
MOST TOOLS AVAILABLE WITH PISTOL GRIP (SH) AND IN-LINE SPLIT SYSTEMS (SR) AND/OR VACUUM COLLECTOR SYSTEMS.
*RECOMMENDED FOR HIGH PRODUCTION APPLICATIONS. GB940 (ELECTRIC) OR GB910 (AIR) POWERUNIT REQUIRED
Commercial Blind Rivets for *GB2480
POP® Rivet	3/16"
Magna-Lok®	1/4"
T®	1/4"
Monobolt®	1/4"
Plastic Split	1/4"
Klamptite® Bulbtite®	1/4"
Floor-Tight®	1/4"
POP Closed End	1/4"

Magna-Grip®, C50L®, and BOM® are registered trademarks of HOWMET AEROSPACE. Maxlok®, LD Avdelok® and Avbolt® are registered trademarks of Avdel UK Limited
*RECOMMENDED FOR HIGH PRODUCTION APPLICATIONS. GB940 (ELECTRIC) OR GB910 (AIR) POWERUNIT REQUIRED.
Commercial Lockbolts for *GB2480
Magna-Grip® Maxlok®	3/16"-1/4"
Lockbolt C50L® LD AVDELOK®	5/32"-1/4"
BOM® Avbolt®	1/4"
Container Bolt	3/8"
