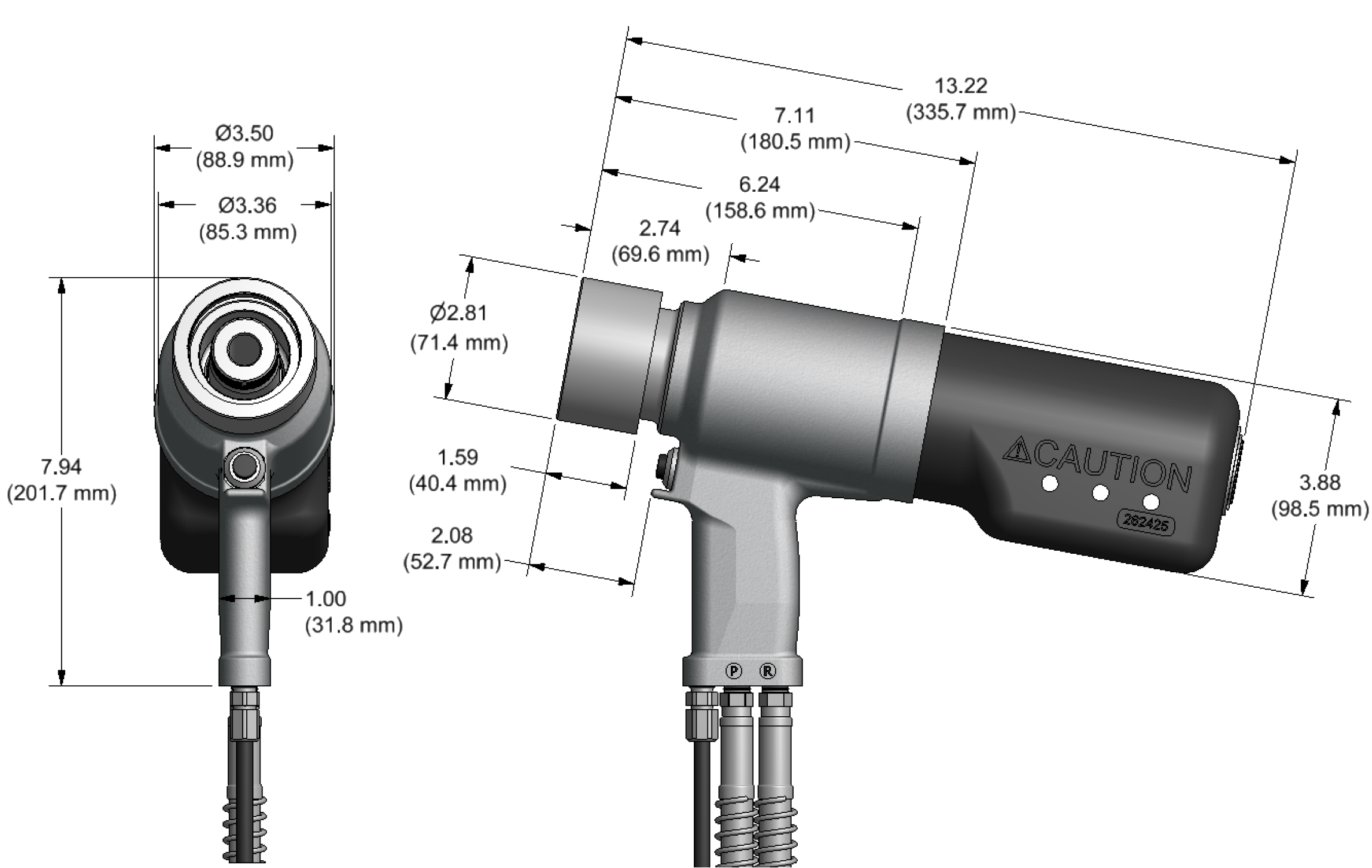

The GB2624PTD is a hydraulic installation tool capable of installing 1/2" lockbolts. It weighs 24 lbs. (10.9 kg) and can be operated in any position. It has a 1.687" (42.8 mm) fastener setting stroke and a rated pull load of 30,356 lbs. (135.03 kN) @ 6,500 psi. (448.2 bar).
The GB2624PTD electric actuated installation tool operates on hydraulic pressure developed by the GB947 or equivalent power unit set at 6,500 psi (448.2 bar) maximum PULL pressure and 3,200 psi. (220.6 bar) maximum RETURN pressure. The tool comes equipped with 2 feet (.61 m) of hydraulic hoses and couplings, electric actuator and cord.
| Weight | 24 lbs. (10.9 kg) |
| Rated Pull Load | 30,356 lbs. (135.03 kN) @ 6,500 psi |
| Stroke | 1.687" (42.8 mm) |
| Noise Level | No noise hazards identified. (20 max dB(A) |
| Warranty | 1 year |
Nose Assembly Selection Chart - GB2624PTD
Click Images For Enlarged View
BOM®
| DIA. | NOSE ASSEMBLY |
|---|---|
| 1/2" | BOM16-2624-37 |
FOOTNOTES
| GAGE BILT CERTIFIES THE GB2624PTD WILL INSTALL THE ABOVE FASTENERS | |
| NOTE: THE LAST 2 DIGITS OF THE NOSE ASSEMBLY REPRESENTS THE LENGTH THE NOSE ASSEMBLY EXTENDS FROM THE TOOL. (I.e. -37 = 3.7 inches) |
CREDITS
| BOM® IS A REGISTERED TRADEMARKS OF HOWMET AEROSPACE. AVBOLT® IS A REGISTERED TRADEMARKS OF AVDEL UK LIMITED |
