GB54B Info:
APPLICATIONS
- Aerospace and Commercial blind rivets
- Nut plate rivets
- Max Type
- All materials thru 3/32"
- Aluminum thru 1/8"
DOWNLOADS

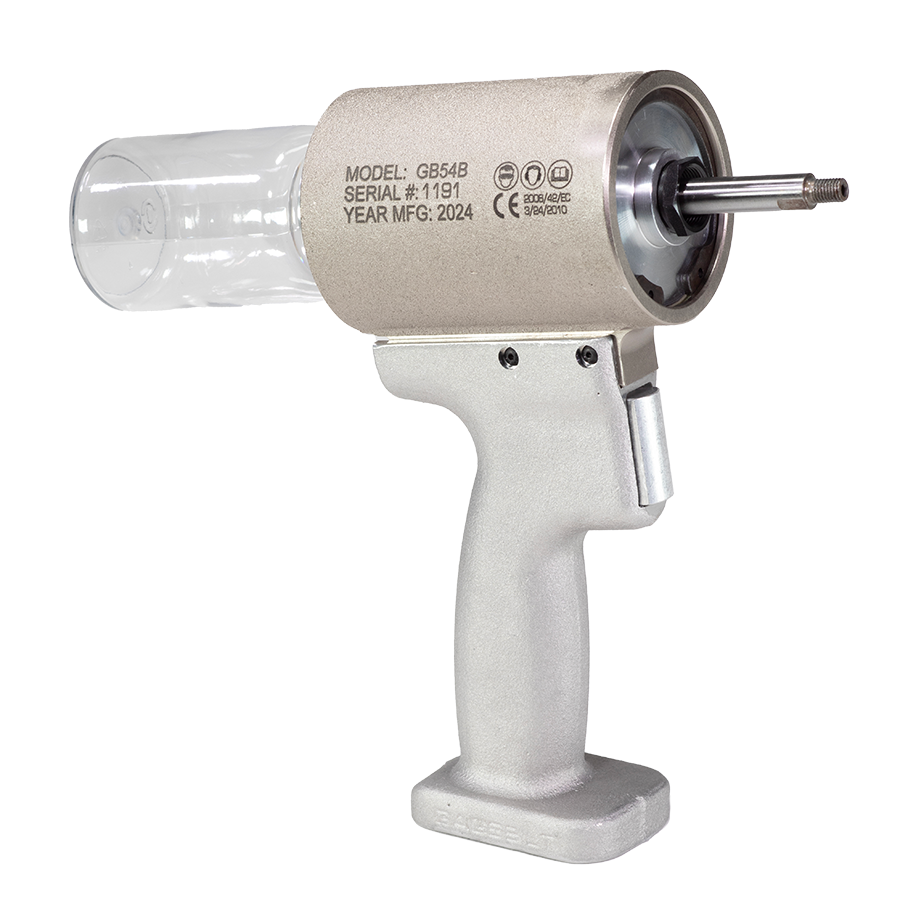

The GB54B pneumatic installation tool is designed specifically for the most efficient installation of blind fasteners. It will install aluminum fasteners through 5/32" diameter, and through 1/8" diameter fasteners in any material. It weighs only 1.8 lbs. (0.82 kg) and can operate in any position.
| Weight | 1.8 lbs. (0.82 kg) |
| Rated Pull Load | 700 lbs. (3.11 kN) |
| Stroke | .740” (18.8mm) |
| Width | 7.13 (181.1 mm) |
| Noise Level | 81.5 dB(A) |
| Warranty | 1 year |
Nose Assembly Selection Chart - GB54B
Click Images For Enlarged View
NUT PLATE RIVETS MS20600 SERIES CCR244/264/274 MS/9SP/PT BACR15CC/CF/DA/DR
| DIA. | STRAIGHT |
|---|---|
| 3/32 | 3C-54-43 |
| 1/8 | 4C-54-43 |
NAS1398A/1399A NAS1738A/1739A RV1000/1100 & 1200
| DIA. | STRAIGHT |
|---|---|
| 3/32 | 3A-54-43 |
| 1/8 | 4A-54-43 |
BLIND RIVET (SINGLE ACTION) WITH OR W/OUT DRIVE WASHER NAS1900 S & U SERIES
| DIA. | STRAIGHT |
|---|---|
| 1/8 | SMLS04-54-43 |
OPEN END NAIL RIVET
| DIA. | STRAIGHT |
|---|---|
| 3/32 | 3N-54-43 |
| 1/8 1 | 4N-54-43 |
CLOSED END NAIL RIVET (ALUMINUM MANDREL)
| DIA. | STRAIGHT |
|---|---|
| 3/32 | 3N-54-43 |
| 1/8 | 4CEA-54-43 |
CLOSED END NAIL RIVET (STEEL MANDREL)
| DIA. | STRAIGHT |
|---|---|
| 3/32 | 3N-54-43 |
| 1/8 | 4CES-54-43 |
FASTACK® AF5022 AF5055 S149A020
| DIA. | STRAIGHT |
|---|---|
| 3/32 | 3C-54-43 |
| 1/8 | 4C-54-43 |
SUPERTACK® AF5075 AF5076
| DIA. | STRAIGHT |
|---|---|
| 1/8 | 3A-54-43 |
| 5/32 | 4A-54-43 |
FOOTNOTES
| GAGE BILT CERTIFIES THE GB54B WILL INSTALL THE ABOVE FASTENERS | |
| 1) ALUMINUM & STEEL ONLY | |
| *ALL COUNTERSUNK 'C' NOSE ASSEMBLIES MAY BE USED TO INSTALL BOTH UNIVERSAL & COUNTERSUNK HEAD RIVETS | |
| NOTE: THE LAST 2 DIGITS OF THE NOSE ASSEMBLY REPRESENTS THE LENGTH THE NOSE ASSY EXTENDS FROM THE TOOL I.E. -20 = 2.0 INCHES |
CREDITS
| FASTACK® AND SUPERTACK® ARE REGISTERED TRADEMARKS OF ALLFAST FASTENING SYSTEMS INC. |
