GB722/568 Info:
DOWNLOADS

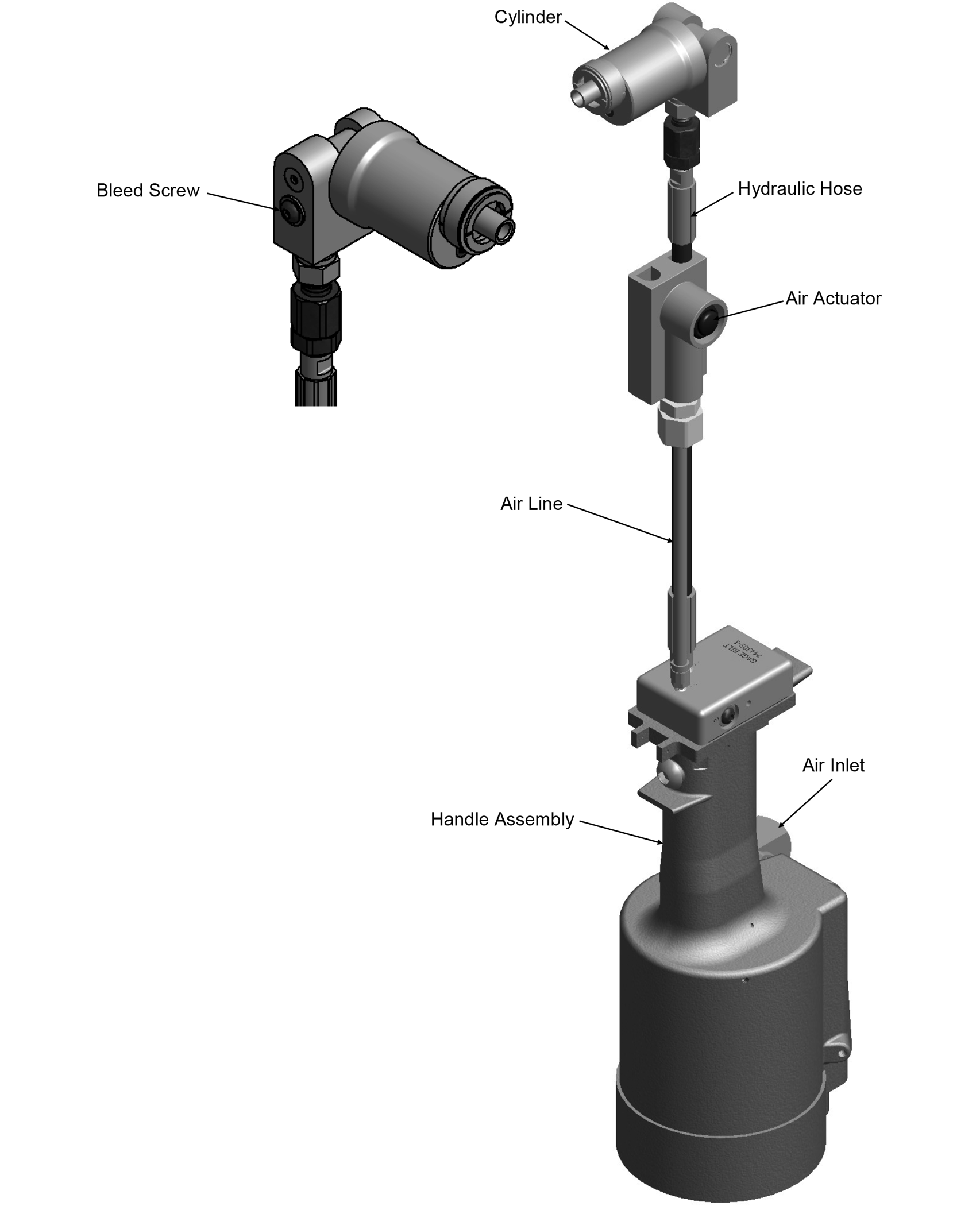

The GB722/568 is a pneumatic-hydraulic installation tool designed specifically for the efficient installation of 5/32” & 3/16” only HUCKRIMP® (krimpnuts) with a crimping action that deforms the nut to provide accurate installation loads. It (7.6 mm) fastener setting stroke and a rated pull load of 4,770 lbs. (21.22 kN) with 90 psi (6.2 bar) air pressure at the air inlet.
The GB722/568 installation tool operates on 90 to 100 psi (6.2 - 6.9 bar) of air pressure, with 90 psi. (6.2 bar) providing the maximum efficiency. At 90 psi. (6.2 bar) air pressure, the GB722/568 does not exceed 81.5 dB(A) and consumes .16 SCF/cycle (4.53 L/cycle).
| Hand Weight | 2.5 lbs. (1.13 kg) |
| Rated Pull Load | 4,770 lbs. (21.22 kN) |
| Stroke | .300" (7.6 mm) |
| Noise Level | Less than 81.5 dB(A) |
| Warranty | 1 year |
Nose Assembly Selection Chart - GB722/568
NOSE ASSEMBLY SELECTION CHART - GB722/568
| FASTENER | DIAMETER | STRAIGHT |
|---|---|---|
| NAS4445 | 5/32" | KS05-568-11 |
| NAS4450 | 3/16" | KS06-568-11 |
FOOTNOTES
| GAGE BILT CERTIFIES THE GB722/568 WILL INSTALL THE ABOVE FASTENERS | |
| The GB722/568 installation tool is suitable for installing only 5/32” & 3/16” HUCKRIMP® (Krimpnuts) with 85 psi (5.9 bar) min. required. |
