The GB110AOS is a battery operated 20V installation tool designed specifically for the efficient installation of blind rivets 1/8” (3.2 mm) thru 1/4” (6.3 mm) and lockbolts 5/32” (3.9 mm) thru 1/4” (6.3 mm) diameter. It weighs 4.6 lbs. (2.1 kg) and can be operated in any position. It has a .500” (12.7 mm) fastener setting stroke and a rated pull load of 5,395 lbs. (24 kN).
NOSE ASSEMBLIES ARE NOT FURNISHED WITH THIS TOOL AND MUST BE ORDERED SEPARATELY. (Contact Gage Bilt for more nose assembly options).
| Weight (Incl. battery) | 4.6 lbs. (2.1 kg) |
| Rated Pull Load | 5,395 lbs. (24 kN) |
| Stroke | .500” (12.7 mm) |
| Battery Weight | .32 lbs. (0.145 kg) |
| Height | 11.18 (283.8 mm) |
| Width | 9.57 (242.9 mm) |
| Warranty | 1 year |
Nose Assembly Selection Chart - GB110AOS
Click Images For Enlarged View
NAS and GP®
SHEAR/TENSION
LOCKBOLTS
BACB30TY BACB30UA
BACB30TZ BACB30UB
BACB30DY BACB30GX
BACB30DX BACB30GP
BACB30GO BACB30GY
BACB30GW

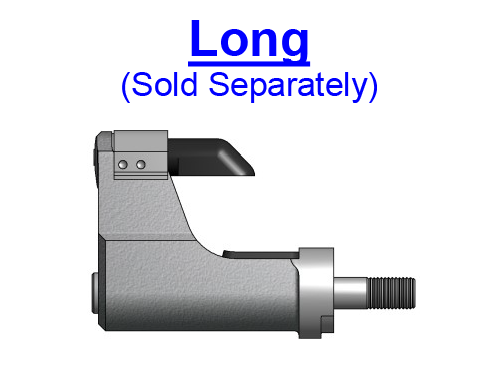

| DIA. | STANDARD | STRADDLE NOSE 1 | LONG |
|---|---|---|---|
| 5/32" | NAST05-25OSSG NASS05-25OSSG |
NAST05-30OSSG NASS05-30OSSG |
NAST05-206G-34OS NASS05-206G-34OS |
| 3/16" | NAS06-25OSSG | NAS06-30OSSG | NAS06-206G-34OS |
| 1/4" | NAS08-25OSSG | NAS08-30OSSG | NAS08-206G-34OS |
MGP® (MILLIMETER) LOCKBOLT
| DIA. | STANDARD | STRADDLE NOSE 1 | LONG |
|---|---|---|---|
| 4mm | MGP4-25OSSG | MGP4-30OSSG | MGP4-206G-34OS |
| 5mm | MGP5-25OSSG | MGP5-30OSSG | MGP5-206G-34OS |
LGP® LOCKBOLT
LGPL2SC-V BACB30VM
LGPL18SC-V BACB30XT
LGPL4SC-V ABS0548
LGPL2SP-V BACB30VN
LGPL4SP-V ASNA2392
LGPL8SC-V BACB30WD
LGPL9SC-V BACB30WB
LGPL9SP-V BACB30VY
BACB31N BACB31P
| DIA. | STANDARD | STRADDLE NOSE 1 | LONG |
|---|---|---|---|
| 5/32" | LGP05-25OS | LGP05-30OS | LGP05-206G-34OS |
| 3/16" | LGP06-25OS | LGP06-30OS | LGP06-206G-34OS |
| 7/32" | LGP07-25OS | LGP07-30OS | LGP07-206G-34OS |
| 1/4" | LGP08-25OS | LGP08-30OS | LGP08-206G-34OS |
MLGP® (MILLIMETER) LOCKBOLT
| DIA. | STANDARD | STRADDLE NOSE 1 | LONG |
|---|---|---|---|
| 4mm | MLGP4-25OS | MLGP4-30OS | MLGP4-206G-34OS |
| 5mm | MLGP5-25OS | MLGP5-30OS | MLGP5-206G-34OS |
NAS1900 S & U SERIES UNIMATIC® BLIND RIVET (SINGLE ACTION) WITH OR W/OUT DRIVE WASHER
| DIA. | STANDARD | STRADDLE NOSE 1 | LONG |
|---|---|---|---|
| 1/8" | SMLS04-27OSSG | SMLS04-206H-37OS | |
| 5/32" | SMLS05-27OSSG | SMLS05-206H-37OS | |
| 3/16" | SMLS06-27OSSG | SMLS06-206H-37OS | |
| 1/4" | SMLS08-27OSSG | SMLS08-206H-37OS |
MS90353S & U / MS90354S & U
MS21140S & U / MS21141S & U
MAXIBOLT®, BACB30YY, YU, & YT
CR7000 SERIES
BLIND BOLT (SINGLE ACTION)
WITH OR W/OUT DRIVE WASHER
| DIA. | STANDARD | STRADDLE NOSE 1 | LONG |
|---|---|---|---|
| 5/32" | SB05-27OSSG | SB05-206H-37OS | |
| 3/16" | SB06-27OSSG | SB06-206H-37OS | |
| 1/4" | SB08-27OSSG | SB08-206H-37OS |
EN6122 & UAB130-EU
EN6127 & UAB6127-EU
EN6128 & UAB100-EU
EN6129 & UABP-EU
MAXIBOLT® PLUS
| DIA. | STANDARD | STRADDLE NOSE 1 | LONG |
|---|---|---|---|
| 3/16" | UAB06-27OSSG | UAB06-206H-37OS | |
| 1/4" | UAB08-27OSSG | UAB08-206H-37OS |
NAS1900 S & U SERIES
UNIMATIC® BLIND RIVET
(SINGLE ACTION)
WITH DRIVE WASHER
| DIA. | STANDARD | STRADDLE NOSE 1 | LONG |
|---|---|---|---|
| 1/4" | 08MAX-27OSSG | 08MAX-206H-37OS |
"A" CODE NAS1398A, NAS1399A NAS1738A, NAS1739A
| DIA. | STANDARD | STRADDLE NOSE 1 | LONG |
|---|---|---|---|
| 1/8" | 4A-27OSSG | 4A-206H-37OS | |
| 5/32" | 5A-27OSSG | 5A-206H-37OS | |
| 3/16" | 6A-27OSSG | 6A-206H-37OS | |
| 1/4" | SMLS08-27OSSG | SMLS08-206H-37OS |
ASP® ASP 2, ASP PF, ASP 2 F, ASP 2 LC, ASP 4 FF, ASP FF, ASP F, ASP-LC and MAF
| DIA. | STANDARD | STRADDLE NOSE 1 | LONG |
|---|---|---|---|
| 13/64" | ASP06-27OSSG | ASP06-206H-37OS | |
| 17/64" | ASP08-27OSSG | ASP08-206H-37OS | |
| 21/64" | ASP10-27OSSG | ASP10-206H-37OS |
STANDARD MBC® NAS1719, NAS1720 NAS1721
| DIA. | STANDARD | STRADDLE NOSE 1 | LONG |
|---|---|---|---|
| 1/8" | MBC04-27OSSG 3 | MBC04-206H-37OS 3 | |
| 5/32" | MBC05-27OSSG 3 | MBC05-206H-37OS 3 | |
| 3/16" | MBC06-27OSSG 3 | MBC06-206H-37OS 3 |
GROUND STUD, M83454 & BACS53B 2
| DIA. | STANDARD | STRADDLE NOSE 1 | LONG |
|---|---|---|---|
| 13/64" | GS8-32OSSG | GS8-206H-42OS | |
| 17/64" | GS10-32OSSG | GS10-206H-42OS |
FOOTNOTES
| GAGE BILT CERTIFIES THE GB110AOS WILL INSTALL THE ABOVE FASTENERS | |
| 1) -30 STRADDLE NOSES ARE DEISIGNED TO REACH OVER THE COLLAR | |
| 2)BACS53B -10 ONLY | |
| 3) MAY REQUIRE MORE THAN ONE PULL | |
| NOTE: THE LAST 2 DIGITS OF THE NOSE ASSEMBLY REPRESENTS THE LENGTH THE NOSE ASSEMBLY EXTENDS FROM THE TOOL. (I.e. -25 = 2.5 inches) |
CREDITS
| MGP®, GP®, LGP®, MLGP®, UNIMATIC®, AND ASP® ARE REGISTERED TRADEMARKS OF HOWMET AEROSPACE. MAXI-BOLT®, IS A REGISTERED TRADEM ARK OF CHERRY AEROSPACE FASTENERS. |
