GB107A SERIES

Battery Operated Rivet Tools

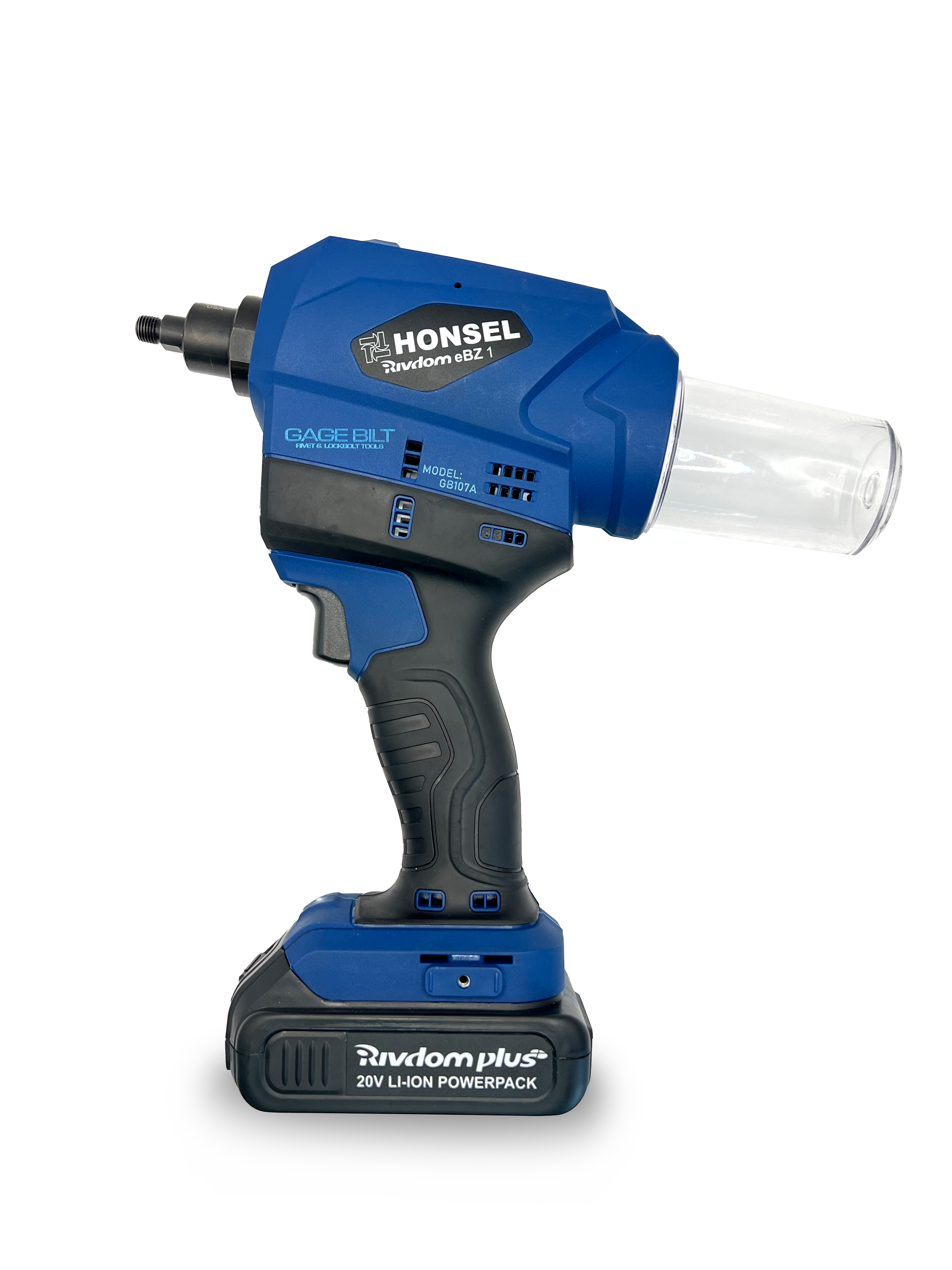

GB107A SERIES Battery Operated Tool

GB107A SERIES Info:

DOWNLOADS
NOSE ASSEMBLY CHART - GB107A SERIES

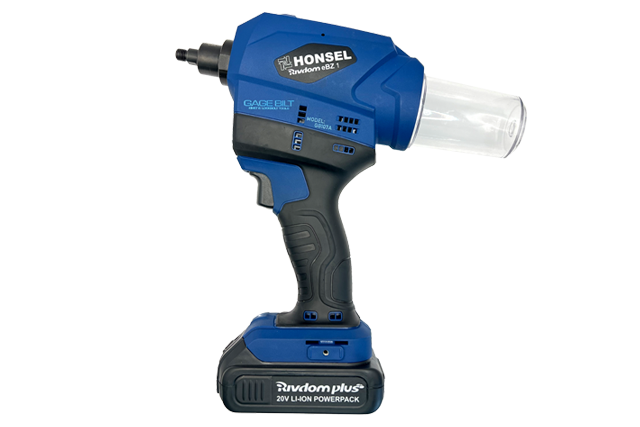

The GB107A SERIES is a battery operated 20V installation tool designed specifically for the efficient installation of 3/32” (2.4 mm) thru 3/16” (5.0 mm) blind rivets. It weighs 3.5 lbs. (1.6 kg) and can be operated in any position. It has a .984” (25 mm) fastener setting stroke and a rated pull load of 2,248 lbs. (10 kN).

Weight (Incl. battery) 3.5 lbs. (1.6 kg)
Rated Pull Load 2,248 lbs. (10 kN)
Stroke .984” (25 mm)
Battery Weight .32 lbs. (0.145 kg)
Height 11.250 (285.5 mm)
Width 10.500 (266.5 mm)
Warranty 1 year

Nose Assembly Selection Chart - GB107A SERIES

Click Images For Enlarged View

NOSE ASSEMBLY SELECTION CHART - GB107A-704

GAGE BILT CERTIFIES THE GB107A-704 WILL INSTALL THE FASTENERS LISTED BELOW WITH
NOSE ASSEMBLIES SHOWN BELOW.BEFORE USING COMPETITOR OFFSET OR RIGHT ANGLE NOSE ASSEMBLIES
CONTACT GAGE BILT FOR APPROVAL.FAILURE TO GET APPROVAL WILL VOID TOOL WARRANTY.
FASTENER DIAMETER STRAIGHT
STANDARD LONG
RIGHT ANGLE 1 OFFSET
CHERRYMAX®
CHERRYMAX® 'AB'
MBC® LOCK CREATOR
BACR15FR/FP
BACR15GF/GK		 1/8
5/32
3/16
 456MAX-701-17
ABOVE NOSE ASSY. INSTALLS
1/8", 5/32" & 3/16" DIAMETERS		 456MAX-704-35
456MAX-749-35 2
ABOVE NOSE ASSY. INSTALLS
1/8", 5/32" & 3/16" DIAMETERS		 456MAX-704-54RA
ABOVE NOSE ASSY. INSTALLS
1/8", 5/32" & 3/16" DIAMETERS		 456MAX-704B-40OS
ABOVE NOSE ASSY. INSTALLS
1/8", 5/32" & 3/16" DIAMETERS
NUT PLATE RIVETS
MS20600 SERIES
CCR244/264/274
MS/9SP/PT
BACR15CC/CF/DA/DR		 3/32
1/8
5/32
3/16		 3C-101704-16
4C-704A-16
5C-704A-16
6C-704A-16		   3C-704-54RA
4C-704-54RA
5C-704-54RA
6C-704-54RA		 3C-704A-40OS
4C-704A-40OS
5C-704A-40OS
6C-704A-40OS
UNIMATIC® BLIND RIVET
(SINGLE ACTION)
WITH OR W/OUT DRIVE WASHER
NAS1900 S & U SERIES		 1/8
5/32
3/16		 SMLS04-704A-16
SMLS05-704A-16
SMLS06-704A-16		   SMLS04-704-54RA
SMLS05-704-54RA
SMLS06-704-54RA		 SMLS04-704A-40OS
SMLS05-704A-40OS
SMLS06-704A-40OS
UNIMATIC® BLIND RIVET
(SINGLE ACTION)
WITH DRIVE WASHER
NAS1900 S & U SERIES		 1/8
5/32
3/16		 UBR04-704A-16
UBR05-704A-16
UBR06-704A-16		   456UBR-704-54RA
ABOVE NOSE ASSY. INSTALLS
1/8", 5/32" & 3/16" DIAMETERS		 456MAX-704B-40OS
ABOVE NOSE ASSY. INSTALLS
1/8", 5/32" & 3/16" DIAMETERS
'A' CODE
NAS1398A
NAS1399A		 1/8
5/32
3/16		 3A-101704-16
4A-704A-16
5A-704A-16
6A-704A-16		   3A-704-54RA
4A-704-54RA
5A-704-54RA
6A-704-54RA		 3A-704A-40OS
4A-704A-40OS
4A-704A-40OS
6A-704A-40OS
GROUND STUD
M83454
BACS53B1EA1/2		 8/32
10/32		 GS8-704-16
GS10-704A-19		   GS8-704A-54RA
GS10-704-54RA		 GS8-704-40OS
GS10-704A-40OS
CHERRYMAX® and MBC® are registered trademarks of Cherry Aerospace Fasteners. UNIMATIC® is a registered trademark of Howmet Aerospace®.
1) 10770454RA STROKE LIMITER REQUIRED (SOLD SEPARATE) AND MUST BE USED FOR ALL RIGHT ANGLE "RA" NOSES. FAILURE TO USE STROKE LIMITER WILL RESULT IN TOOL FAILURE AND WILL VOID WARANTY. RIGHT ANGLE NOSE ASSEMBLIES MAY REQUIRE MORE THAN ONE PULL
(2) FRONT EJECTING NOSE ASSEMBLY.
NOTE: THE LAST 2 DIGITS OF THE NOSE ASSEMBLY REPRESENTS THE APPROXIMATE LENGTH THE NOSEEXTENDS FROM THE TOOL I.E. -16 = 1.6 INCHES
12/24 REV 9/25

NOSE ASSEMBLY SELECTION CHART - GB107A-751

GAGE BILT CERTIFIES THE GB107A-751 WILL INSTALL THE FASTENERS LISTED BELOW WITH
NOSE ASSEMBLIES SHOWN BELOW.BEFORE USING COMPETITOR OFFSET OR RIGHT ANGLE NOSE ASSEMBLIES
CONTACT GAGE BILT FOR APPROVAL.FAILURE TO GET APPROVAL WILL VOID TOOL WARRANTY.
FASTENER DIA. STRAIGHT RIGHT ANGLE1 OFFSET
MS90353S & U / MS90354S & U
MS21140S & U / MS21141S & U
MAXIBOLT®, BACB30YY, YU, & YT
CR7000 SERIES
BLIND BOLT (SINGLE ACTION)
WITH OR W/OUT DRIVE WASHER		 1/8



5/32		 SB04-752C-20
SB04-752C-80
SB04-752C-45

SB05-752C-20
SB05-752C-80
SB05-752C-45
 SB04-751C-54RA 1



SB05-751C-54RA 1		 SB04-752B-43OS



SB05-752A-43OS
MS90353S & U / MS90354S & U
MS21140S & U / MS21141S & U
MAXIBOLT®, BACB30YY, YU, & YT
CR7000 SERIES
BLIND BOLT (SINGLE ACTION)
WITH DRIVE WASHER		 1/8



5/32		 UBB04-752C-20
UBB04-752C-80
UBB04-752C-45

UBB05-752C-20
UBB05-752C-80
UBB05-752C-45
 UBB04-751C-54RA 1



UBB05-751C-54RA 1		 UBB04-752B-43OS



UBB05-752B-43OS
EN6122 & UAB130-EU
EN6127 & UAB6127-EU
EN6128 & UAB100-EU
EN6129 & UABP-EU
MAXIBOLT® PLUS		 5/32 UAB05-752C-20
UAB05-752C-45		 UAB05-751C-54RA 1 UAB05-752B-43OS
UNIMATIC® BLIND RIVET
(SINGLE ACTION)
WITH OR W/OUT DRIVE WASHER
NAS1900 S & U SERIES		 1/8


5/32


3/16
 SMLS04-752C-20
SMLS04-752C-45

SMLS05-752C-20
SMLS05-752C-45

SMLS06-752B-20
SMLS06-752B-45		 SMLS04-751C-54RA 1


SMLS05-751C-54RA 1


SMLS06-751C-54RA 1		 SMLS04-752B-43OS


SMLS05-752B-43OS


SMLS06-752B-43OS
NAS1900 S & U SERIES
UNIMATIC® BLIND RIVET
(SINGLE ACTION)
WITH DRIVE WASHER		 1/8
5/32
3/16		 456UBR-751A-21 2
456UBR-751A-61 2		 456UBR-751D-54RA 1, 2 456MAX-731-43OS 2
"A" CODE
NAS1398A, NAS1399A
NAS1738A, NAS1739A		 3/32

1/8


5/32


3/16		 3A-352B-25

4A-752C-20
4A-752C-45

5A-752C-20
5A-752C-45

6A-752B-20
6A-752B-45
 3A-751C-54RA 1>

4A-751C-54RA 1


5A-751C-54RA 1>


6A-751C-54RA 1>
 3A-752B-43OS

4A-752B-43OS


5A-752B-43OS

6A-752B-43OS
NUT PLATE RIVETS
MS20600 SERIES
CCR244/264/274
MS/9SP/PT
BACR15CC/CF/DA		 3/32


1/8		 3NP-107-23
3NP-352-61

5N-107-23
5N-352-61
 3NP-751B-54RA 1


45N-751B-54RA 1		 3NP-751A-43OS


5N-751A-43OS
CHERRYMAX®,
CHERRYMAX® 'AB',
MBC® LOCK CREATOR
BACR15FR/FP, BACR15GF/GK		 1/8
5/32
3/16		 456MAX-107-23 2
456MAX-751A-61 2
 456MAX-751D-54RA 1, 2 456MAX-731-43OS 2
ASP®
ASP 2, ASP PF, ASP 2 F,
ASP 2 LC, ASP 4 FF, ASP FF,
ASP F, ASP-LC and MAF		 13/64 ASP06-752C-20
ASP06-752C-45		 ASP06-751B-54RA 1 ASP06-752B-43OS
STANDARD MBC®
NAS1719, NAS1720
NAS1721		 1/8


5/32


3/16		 MBC04-752C-20
MBC04-752C-45

MBC05-752C-20
MBC05-752C-45

MBC06-752B-20
MBC06-752B-45

 MBC04-751C-54RA 1


MBC05-751C-54RA 1


MBC06-751C-54RA 1
 MBC04-752C-43OS


MBC05-752C-43OS


MBC06-752C-43OS
MBC® LOCKCREATOR
NAS1719X(L), NAS1720X(L)
NAS1721X(L)		 1/8
5/32
3/16		 456MAX-107-23 2
456MAX-751A-61 2		 456MAX-751D-54RA 1,2 456MAX-731-43OS 2
GROUND STUD,
M83454 & BACS53B 4		 8/32


10/32		 GS8-752C-20
GS8-752C-45

GS10-752B-20
GS10-752B-45
 GS8-751C-54RA 1


GS10-752A-54RA 1		 GS8-752B-43OS


GS10-752C-43OS
POP® OPEN END
NAIL RIVET		 3/32


1/8


5/32


3/16		 3N-107-23
3N-352-61

4N-107-23
4N-352-61

5N-107-23
5N-352-61

6N-107-23
6N-352-61
 3N-751B-54RA 1


45N-751B-54RA 1


45N-751B-54RA 1


6N-751C-54RA 1
 3N-751A-43OS


4N-751A-43OS


5N-751A-43OS


6N-751A-43OS
POP® CLOSED END
NAIL RIVET
(ALUMINUM MANDREL)		 3/32


1/8


5/32


3/16		 3N-107-23
3N-352-61

4CEA-107-23
4CEA-352-61

5CEA-107-23
5CEA-352-61

6CEA-107-23
6CEA-352-61
 3N-751B-54RA 1


4CEA-751B-54RA 1


5CEA-751B-54RA 1


6CEA-751C-54RA 1
 3N-751A-43OS


4CEA-751-43OS


5CEA-751-43OS


6CEA-751-43OS
POP® CLOSED END
NAIL RIVET
(STEEL MANDREL)		 3/32


1/8


5/32


3/16		 3N-107-23
3N-352-61

4CES-107-23
4CES-352-61

5CES-107-23
5CES-352-61

6CES-107-23
6CES-352-61
 3N-751B-54RA 1


4CES-751B-54RA 1


5CES-751B-54RA 1


6CES-751C-54RA 1		 3N-751A-43OS


4CES-751-43OS


5CES-751-43OS


6CES-751-43OS
FASTACK®
AF5022
AF5055
S149A020		 1/8


5/32


3/16		 4C-752C-20
4C-752C-45

5C-752C-20
5C-752C-45

6C-752B-20
6C-752B-45
 4C-751C-54RA 1


5C-751C-54RA 1


6C-751C-54RA 1		 4C-751A-43OS


5C-751A-43OS


6C-751A-43OS
SUPERTACK®
AF5075
AF5076		 1/8


5/32


3/16


1/4		 3A-352B-25


4A-752C-20
4A-752C-45

5A-752C-20
5A-752C-45

6A-752B-20
6A-752B-45
 3A-751C-54RA 1


4A-751C-54RA 1


5A-751C-54RA 1


6A-751C-54RA 1		 3A-752B-43OS


4A-752B-43OS


5A-752B-43OS


6A-752B-43OS
UNIMATIC® AND ASP® ARE REGISTERED TRADEMARKSOF HOWMET AEROSPACE. CHERRYMAX®, MAXIBOLT® AND MBC® ARE REGISTERED TRADEMARKS OF CHERRY
AEROSPACE. FASTACK® AND SUPERTACK® ARE REGISTERED TRADEMARKS OF ALLFAST FASTENING SYSTEMS INC. POP® IS A REGISTERED TRADEMARK OF EMHART
GAGE BILT CERTIFIES THE GB107A-751 WILL INSTALL THE ABOVE FASTENERS
1) 10775154RA STROKE LIMITER REQUIRED (SOLD SEPARATE) AND MUST BE USED FOR ALL RIGHT ANGLE "RA" NOSES.
FAILURE TO USE STROKE LIMITER WILL RESULT IN TOOL FAILURE AND WILL VOID WARANTY.RIGHT ANGLE NOSE ASSEMBLIES MAY REQUIRE MORE THAN ONE PULL
2) INSTALLS 1/8", 5/32" & 3/16" DIAMETERS.
3) ALUMINUM ONLY.
4) BACS53B -10 ONLY
NOTE: THE LAST 2 DIGITS OF THE NOSE ASSEMBLY REPRESENTS THE LENGTH THE NOSE EXTENDS FROM THE TOOL I.E. -20 = 2.0 INCHES
8/25 REV 9/25
