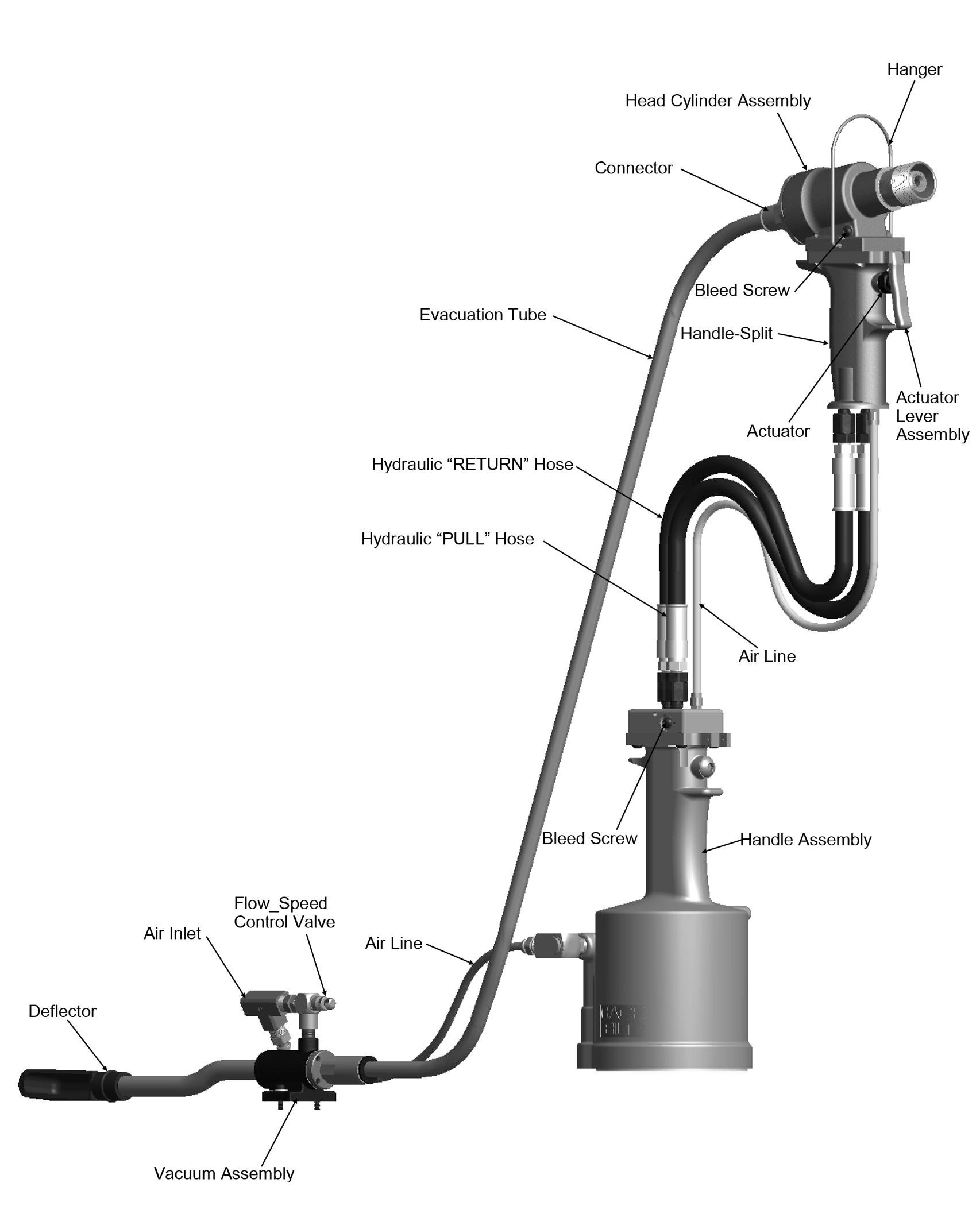

GB745SHV5/LB10 Info:
SPECIFICATIONS
- Hand Held Weight - 2.25 lbs. (1.02 kg)
- Air pressure req'd - 90-100 p.s.i. (6.2-6.9 bar)
- Air consumption - .30 SCF/cycle (8.50 L/cycle)
- Hydraulic oil - Automatic Transmission Oil, Dexron® III, or equivalent
- Setting stroke - .620" (15.75 mm)
- Rated pull load - 6,300 lbs. (28.02 kN)
- Noise level - Less than 80 dB(A)
- Vibration - Tested - No Hazards Found
