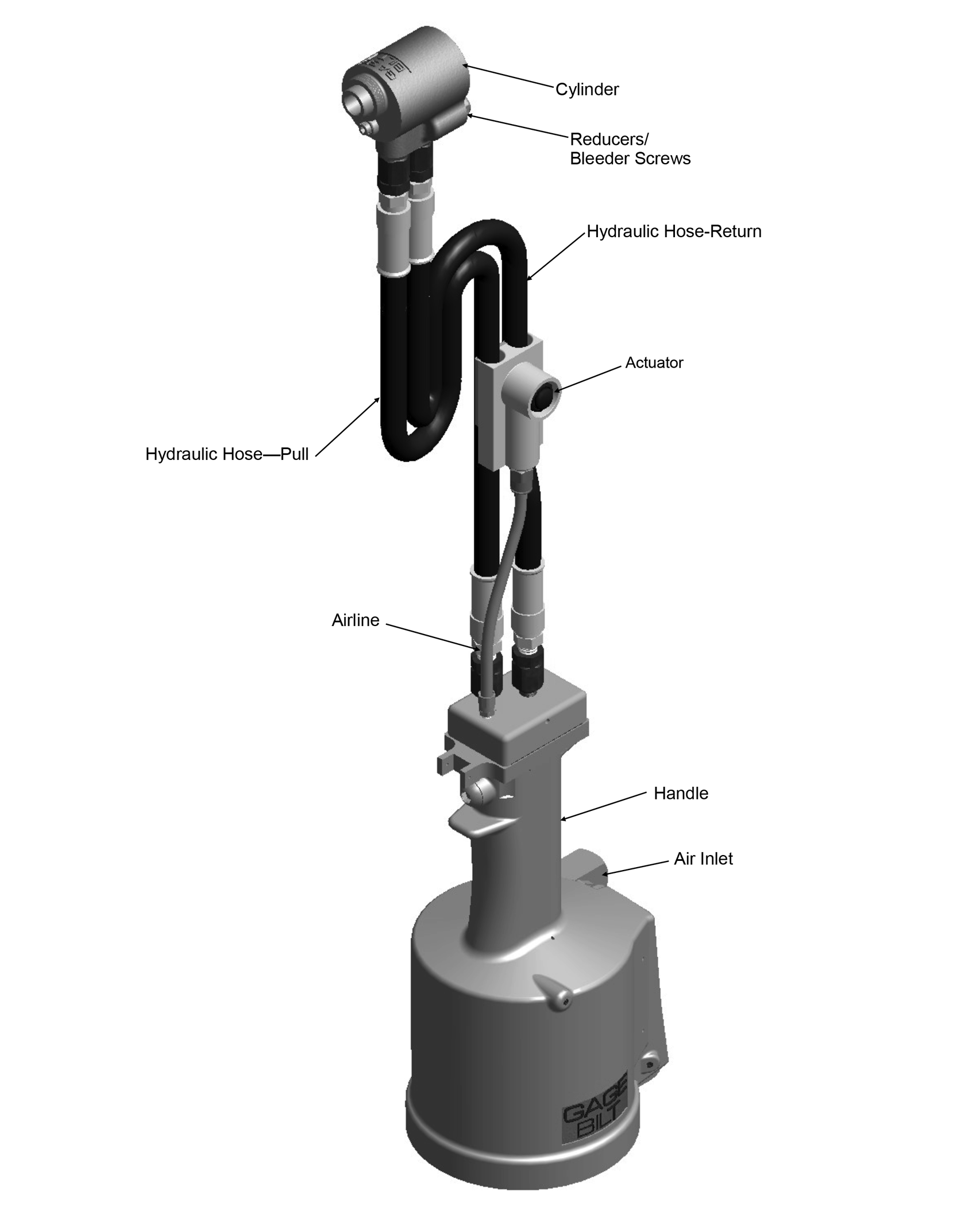

GB745/206-500-5 Info:
SPECIFICATIONS
- Hand Held Weight - 2.0 lbs. (.91 kg)
- Weight - 12 lbs. (5.44 kg)
- Air pressure req'd - 90-100 p.s.i. (6.2-6.9 bar) Max.
- Air consumption - .30 SCF/cycle (8.50 L/cycle)
- Hydraulic Oil - Automatic Transmission Oil, Dexron® III, or equivalent
- Setting stroke - .500" (12.7mm)
- Rated pull load - 5,600 lbs. (24.9 kN)
- Noise level - Less than 81.5 dB(A)
DOWNLOADS
Nose Assembly Selection Chart - GB745/206-500-5
LOCKBOLT,
NAS SHEAR PULL TYPE,
NAS TENSION PULL TYPE,
NASS = SHEAR & GP®
NAST = TENSION
| DIA. | STANDARD | STRADDLE NOSE 1 | LONG |
|---|---|---|---|
| 5/32" | NAST05-206G-25OS NASS05-206G-25OS |
NAST05-206G-30OS NASS05-206G-30OS |
NAST05-206G-34OS NASS05-206G-34OS |
| 3/16" | NAS06-206G-25OS | NAS06-206H-30OS | NAS06-206G-34OS |
| 1/4" | NAS08-206G-25OS | NAS08-206G-30OS | NAS08-206G-34OS |
MGP®
| DIA. | STANDARD | STRADDLE NOSE 1 | LONG |
|---|---|---|---|
| 4mm | MGP4-206G-25OS | MGP4-206G-30OS | MGP4-206G-34OS |
| 5mm | MGP5-206G-25OS | MGP5-206H-30OS | MGP5-206G-34OS |
| 6mm | MGP6-206G-25OS | MGP6-206H-30OS | MGP6-206G-34OS |
LGP®
Lightw eight
Groove
Proportion
LOCKBOLT
DIA.
STANDARD
STRADDLE NOSE 1
LONG
5/32"
LGP05-206G-25OS
LGP05-206G-30OS
LGP05-206G-34OS
3/16"
LGP06-206G-25OS
LGP06-206H-30OS
LGP06-206G-34OS
7/32"
LGP07-206G-25OS
LGP07-206G-30OS
LGP07-206G-34OS
1/4"
LGP08-206G-25OS
LGP08-206G-30OS
LGP08-206G-34OS
MLGP®
DIA.
STANDARD
STRADDLE NOSE 1
LONG
4mm
MLGP4-206G-25OS
MLGP4-206G-30OS
MLGP4-206G-34OS
5mm
MLGP5-206G-25OS
MLGP5-206G-30OS
MLGP5-206G-34OS
6mm
MLGP6-206G-25OS
MLGP6-206G-30OS
MLGP6-206G-34OS
BLIND RIVET (SINGLE ACTION) WITH OR W/OUT DRIVE WASHER NAS1900 S & U SERIES
DIA.
STANDARD
STRADDLE NOSE 1
LONG
1/8"
SMLS04-206H-27OS
SMLS04-206H-37OS
5/32"
SMLS05-206H-27OS
SMLS05-206H-37OS
3/16"
SMLS06-206H-27OS
SMLS06-206H-37OS
1/4"
SMLS08-206H-27OS
SMLS08-206H-37OS
BLIND BOLT (SINGLE ACTION)
WITH OR W/OUT DRIVE WASHER
MS90353S & U / MS90354S & U
MS21140S & U / MS21141S & U
MAXI-BOLT®,
BACB30YY, YU, & YT
DIA.
STANDARD
STRADDLE NOSE 1
LONG
5/32"
SB05-206H-27OS
SB05-206H-37OS
3/16"
SB06-206H-27OS
SB06-206H-37OS
1/4"
SB08-206H-27OS
SB08-206H-37OS
EN6122 & UAB130-EU
EN6127 & UAB6127-EU
EN6128 & UAB100-EU
EN6129 & UABP-EU
DIA.
STANDARD
STRADDLE NOSE 1
LONG
3/16"
UAB06-206H-27OS
UAB06-206H-37OS
1/4"
UAB08-206H-27OS
UAB08-206H-37OS
BACR15FR/FP, BACR15GF/GK, NAS1900 S & U SERIES BLIND RIVET WITH DRIVE WASHER NAS9301-9312
DIA.
STANDARD
STRADDLE NOSE 1
LONG
1/4"
08MAX-206H-27OS
08MAX-206H-37OS
"A" CODE NAS1398A & NAS1399A
DIA.
STANDARD
STRADDLE NOSE 1
LONG
1/8"
4A-206H-27OS
4A-206H-37OS
5/32"
5A-206H-27OS
5A-206H-37OS
3/16"
6A-206H-27OS
6A-206H-37OS
1/4"
SMLS08-206H-27OS
SMLS08-206H-37OS
ASP® ASP 2, ASP PF, ASP 4 FF, ASP 2 F, ASP 2 LC
DIA.
STANDARD
STRADDLE NOSE 1
LONG
13/64"
ASP06-206H-27OS
ASP06-206H-37OS
17/64"
ASP08-206H-27OS
ASP08-206H-37OS
21/64"
ASP10-206H-27OS
ASP10-206H-37OS
NAS1719, NAS1720, NAS1721 & MBC®
DIA.
STANDARD
STRADDLE NOSE 1
LONG
1/8"
MBC04-206H-27OS
MBC04-206H-37OS
5/32"
MBC05-206H-27OS
MBC05-206H-37OS
3/16"
MBC06-206H-27OS
MBC06-206H-37OS
GROUND STUD, BACS53B 2
DIA.
STANDARD
STRADDLE NOSE 1
LONG
13/64"
GS8-206H-32OS
GS8-206H-42OS
17/64"
GS10-206H-32OS
GS10-206H-42OS
FOOTNOTES
1) -30 STRADDLE NOSES ARE DESIGNED TO REACH OVER THE COLLAR.
2) BACS53B -10 ONLY
NOTE: THE LAST 2 DIGITS OF THE NOSE ASSEMBLY REPRESENTS THE LENGTH THE NOSE EXTENDS FROM THE
TOOL I.E. -20 = 2.0 INCHES
CREDITS
GP®, MGP®, LGP®, MLGP®, AND ASP® ARE REGISTERED TRADEMARKS OF HOWMET AEROSPACE. MAXI-BOLT®, IS A REGISTERED TRADEMARK OF CHERRY AEROSPACE FASTENERS.
